Data Sheet

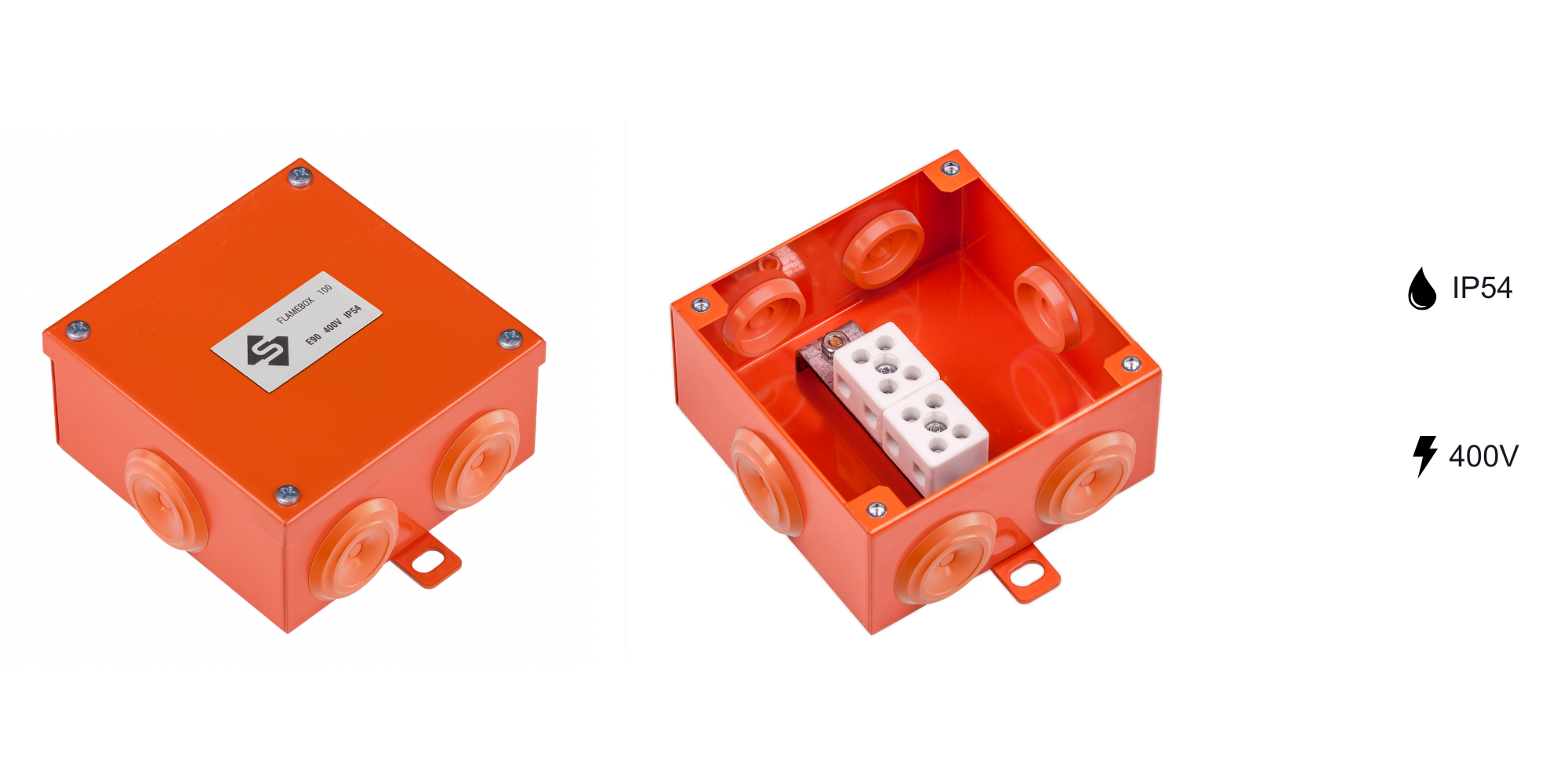

<figure class="image"><img style="aspect-ratio:2000/1000;" src="https://api.sivax.ua/assets/33/7e/06/bc/01/17/41/11/93/b4/d4/bb/97/df/21/c1/337e06bc0117411193b4d4bb97df21c1.png" width="2000" height="1000"></figure>DescriptionFire-resistant junction boxes FLAMEBOX are designed for connecting and distributing fire-resistant cable lines. The metal enclosure, coated with powder paint, provides reliable protection against mechanical damage. The boxes are equipped with a ceramic terminal block and cable glands for sealing cable entries.Technical Specifications<ul><li>Protection rating: IP54</li><li>Voltage: 400V</li><li>Color: orange</li><li>Mounting holes: 6.5×10.5 mm</li></ul>Dimensions<figure class="table"><table><tbody><tr><td>Type</td><td>Name</td><td>Size, mm</td><td>Terminals</td><td>Wire</td><td>Cable entries</td></tr><tr><td>FB10034</td><td>FLAMEBOX 100 3x4 mm2</td><td>100х100х50&nbsp;</td><td>3 poles</td><td>Ø - 4 mm2</td><td>6х25 mm</td></tr><tr><td>FB10044</td><td>FLAMEBOX 100 4x4 mm2</td><td>100х100х50&nbsp;</td><td>4 poles</td><td>Ø - 4 mm2</td><td>6х25 mm</td></tr><tr><td>FB10054</td><td>FLAMEBOX 100 5x4 mm2</td><td>100х100х50&nbsp;</td><td>5 poles</td><td>Ø - 4 mm2</td><td>6х25 mm</td></tr><tr><td>FB10036</td><td>FLAMEBOX 100 3x6 mm2</td><td>100х100х50&nbsp;</td><td>3 poles</td><td>Ø - 6 mm2</td><td>6х25 mm</td></tr><tr><td>FB10046</td><td>FLAMEBOX 100 4x6 mm2</td><td>100х100х50&nbsp;</td><td>4 poles</td><td>Ø - 6 mm2</td><td>6х25 mm</td></tr></tbody></table></figure>

Fire-resistant boxes FLAMEBOX are used to connect and distribute fire-resistant cable lines with E30-E90 functionality. IP54 protection. Compliance with DIN 4102-12, ISO 9001:2015.

FLAMEBOX 100 | Metal fire-resistant junction boxes

Type	Name	Size, mm	Terminals	Wire	Cable entries
FB10034	FLAMEBOX 100 3x4 mm²	100х100х50	3 poles	Ø - 4 mm²	6х25 mm
FB10044	FLAMEBOX 100 4x4 mm²	100х100х50	4 poles	Ø - 4 mm²	6х25 mm
FB10054	FLAMEBOX 100 5x4 mm²	100х100х50	5 poles	Ø - 4 mm²	6х25 mm
FB10036	FLAMEBOX 100 3x6 mm²	100х100х50	3 poles	Ø - 6 mm²	6х25 mm
FB10046	FLAMEBOX 100 4x6 mm²	100х100х50	4 poles	Ø - 6 mm²	6х25 mm
