Data Sheet

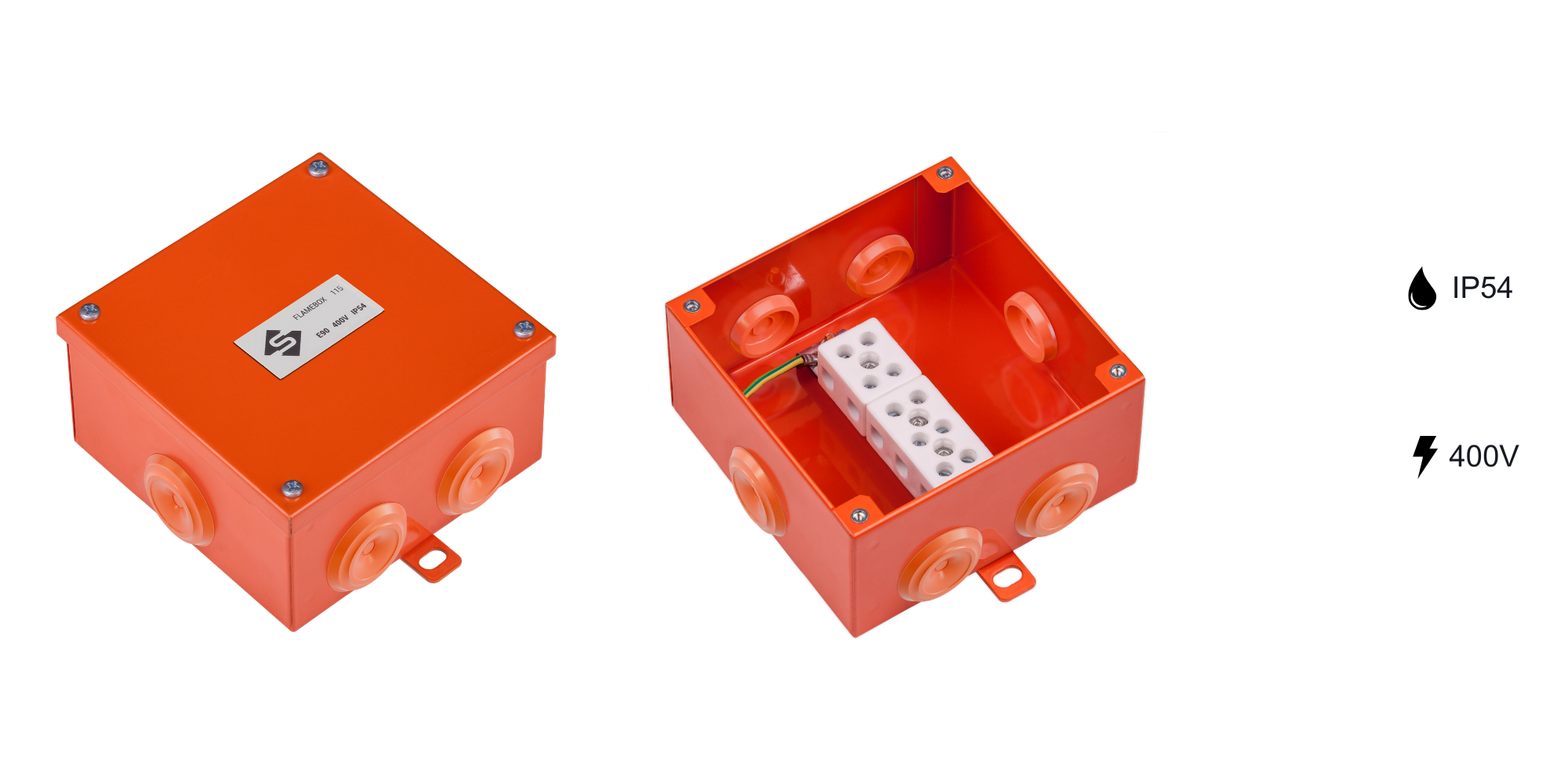

<figure class="image"><img style="aspect-ratio:2000/1000;" src="https://api.sivax.ua/assets/f1/f0/28/17/cd/d2/4c/57/9a/97/38/5d/05/d2/74/19/f1f02817cdd24c579a97385d05d27419.png" width="2000" height="1000"></figure>DescriptionFire-resistant junction boxes FLAMEBOX are designed for connecting and distributing fire-resistant cable lines. The metal enclosure, coated with powder paint, provides reliable protection against mechanical damage. The boxes are equipped with a ceramic terminal block and cable glands for sealing cable entries.Technical Specifications<ul><li>Protection rating: IP54</li><li>Voltage: 400V</li><li>Color: orange</li><li>Mounting holes: 6.5×10.5 mm</li></ul>Dimensions<figure class="table"><table><thead><tr><th>Type</th><th>Name</th><th>Size, mm</th><th>Terminals</th><th>Wire</th><th>Cable entries</th></tr></thead><tbody><tr><td>FB11564</td><td>FLAMEBOX 115 6x4 mm2</td><td>115х115х60 mm</td><td>6 poles</td><td>Ø - 4 mm2</td><td>6х25 mm</td></tr><tr><td>FB11556</td><td>FLAMEBOX 115 5x6 mm2</td><td>115х115х60 mm</td><td>5 poles</td><td>Ø - 6 mm2</td><td>6х25 mm</td></tr><tr><td>FB115310</td><td>FLAMEBOX 115 3x10 mm2</td><td>115х115х60 mm</td><td>3 poles</td><td>Ø - 10 mm2</td><td>6х25 mm</td></tr><tr><td>FB115410</td><td>FLAMEBOX 115 4x10 mm2</td><td>115х115х60 mm</td><td>4 poles</td><td>Ø - 10 mm2</td><td>6х25 mm</td></tr></tbody></table></figure>&nbsp;

Fire-resistant boxes FLAMEBOX are used to connect and distribute fire-resistant cable lines with E30-E90 functionality. IP54 protection. Compliance with DIN 4102-12, ISO 9001:2015.

FLAMEBOX 115 | Metal fire-resistant junction boxes

Type	Name	Size, mm	Terminals	Wire	Cable entries
FB11564	FLAMEBOX 115 6x4 mm²	115х115х60 mm	6 poles	Ø - 4 mm²	6х25 mm
FB11556	FLAMEBOX 115 5x6 mm²	115х115х60 mm	5 poles	Ø - 6 mm²	6х25 mm
FB115310	FLAMEBOX 115 3x10 mm²	115х115х60 mm	3 poles	Ø - 10 mm²	6х25 mm
FB115410	FLAMEBOX 115 4x10 mm²	115х115х60 mm	4 poles	Ø - 10 mm²	6х25 mm

FLAMEBOX 115
