Data Sheet

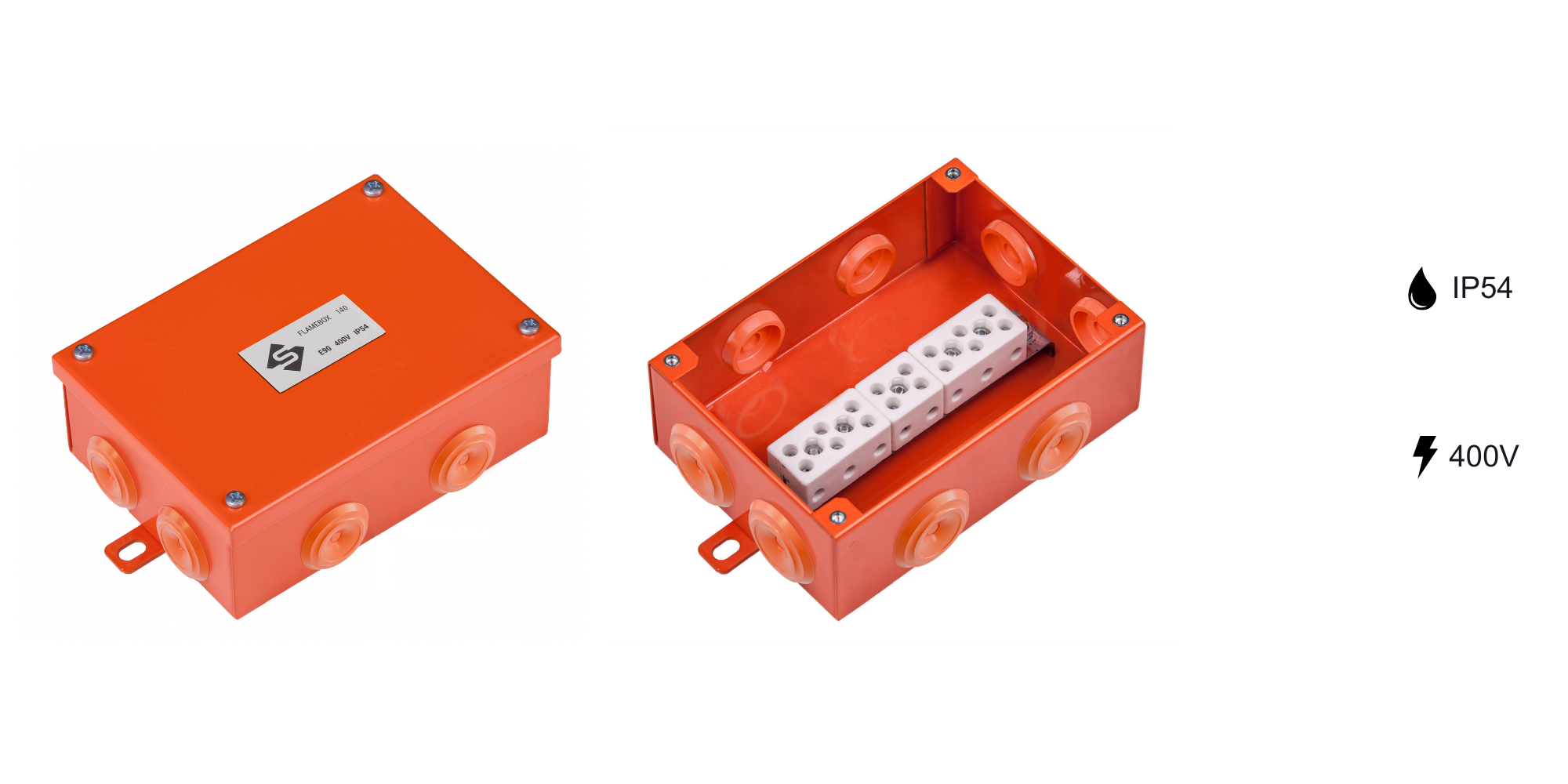

<figure class="image"><img style="aspect-ratio:2000/1000;" src="https://api.sivax.ua/assets/93/07/7b/2b/ee/5b/49/ed/bb/5c/09/bb/3b/d6/b2/c5/93077b2bee5b49edbb5c09bb3bd6b2c5.png" width="2000" height="1000"></figure>DescriptionFire-resistant junction boxes FLAMEBOX are designed for connecting and distributing fire-resistant cable lines. The metal enclosure, coated with powder paint, provides reliable protection against mechanical damage. The boxes are equipped with a ceramic terminal block and cable glands for sealing cable entries.Technical Specifications<ul><li>Protection rating: IP54</li><li>Voltage: 400V</li><li>Color: orange</li><li>Mounting holes: 6.5×10.5 mm</li></ul>Dimensions<figure class="table"><table><tbody><tr><td>Type</td><td>Name</td><td>Size, mm</td><td>Terminals</td><td>Wire</td><td>Cable entries</td></tr><tr><td>FB14084</td><td>FLAMEBOX 140 8x4 mm2</td><td>140х100х50 mm</td><td>8 poles</td><td>Ø - 4 mm2</td><td>6х25 mm</td></tr></tbody></table></figure>

Fire-resistant boxes FLAMEBOX are used to connect and distribute fire-resistant cable lines with E30-E90 functionality. IP54 protection. Compliance with DIN 4102-12, ISO 9001:2015.

FLAMEBOX 140 | Metal fire-resistant junction boxes

Type	Name	Size, mm	Terminals	Wire	Cable entries
FB14084	FLAMEBOX 140 8x4 mm²	140х100х50 mm	8 poles	Ø - 4 mm²	6х25 mm

FLAMEBOX 140
