Fire-resistant junction boxes

FLAMEBOX 100P

FLAMEBOX 100PR

FLAMEBOX 100PF

Plastic boxes

FLAMEBOX 100

FLAMEBOX 115

FLAMEBOX 140

FLAMEBOX 165

FLAMEBOX 250

Metal boxes

Data Sheet

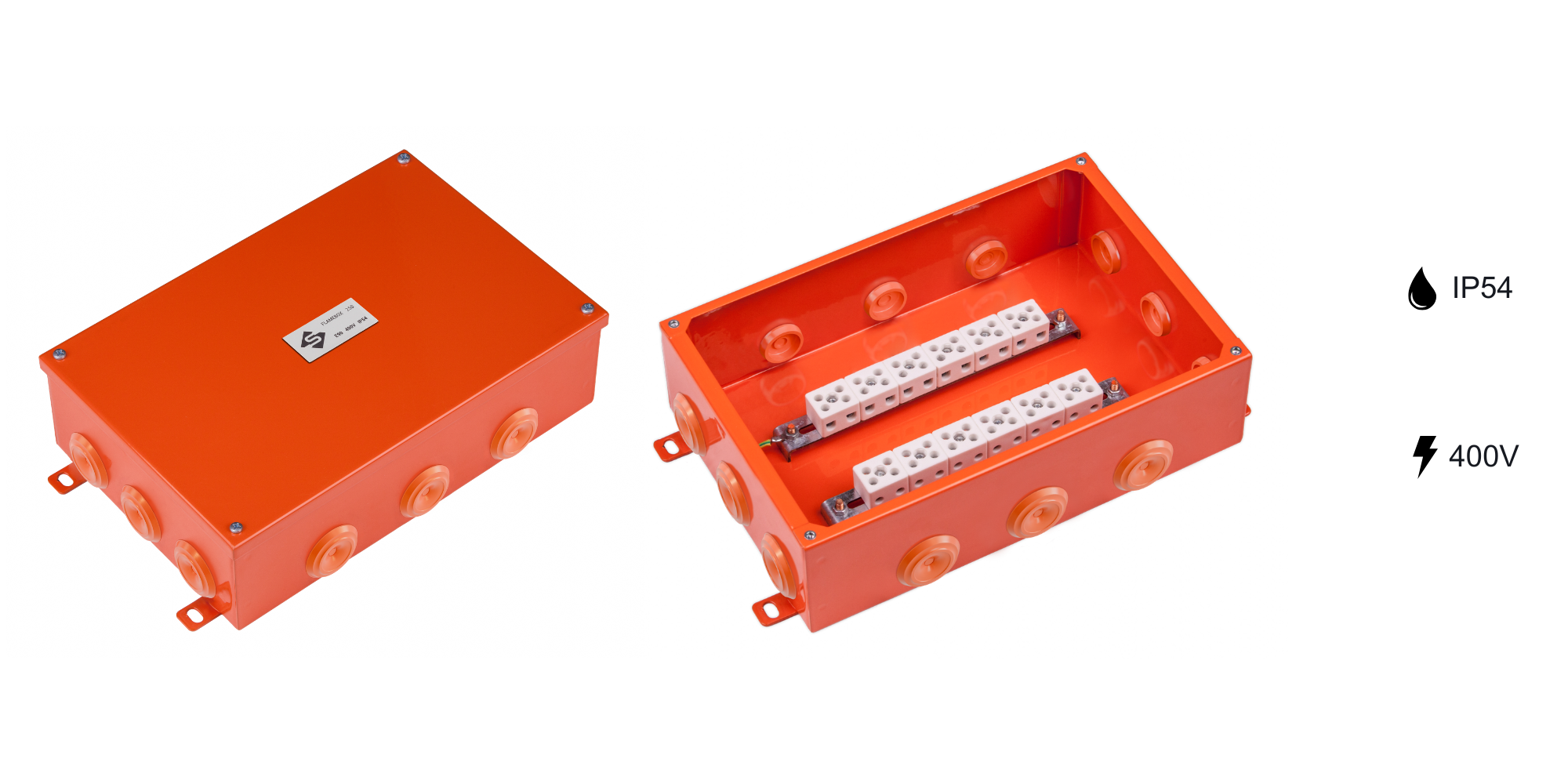

<figure class="image"><img style="aspect-ratio:2000/1000;" src="https://api.sivax.ua/assets/89/93/dd/33/32/bb/43/30/a7/6f/b3/77/7d/aa/fe/e7/8993dd3332bb4330a76fb3777daafee7.png" width="2000" height="1000"></figure>DescriptionFire-resistant junction boxes FLAMEBOX are designed for connecting and distributing fire-resistant cable lines. The metal enclosure, coated with powder paint, provides reliable protection against mechanical damage. The boxes are equipped with a ceramic terminal block and cable glands for sealing cable entries.Technical Specifications<ul><li>Protection rating: IP54</li><li>Voltage: 400V</li><li>Color: orange</li><li>Mounting holes: 6.5×10.5 mm</li></ul>Dimensions<figure class="table"><table><tbody><tr><td>Type</td><td>Name</td><td>Size, mm</td><td>Terminals</td><td>Wire</td><td>Cable entries</td></tr><tr><td>FB250164</td><td>FLAMEBOX 250 16x4 mm2</td><td>250х165х70 mm</td><td>16 poles</td><td>Ø - 4 mm2</td><td>12х25 mm</td></tr><tr><td>FB250244</td><td>FLAMEBOX 250 24x4 mm2</td><td>250х165х70 mm</td><td>24 poles</td><td>Ø - 4 mm2</td><td>12х25 mm</td></tr><tr><td>FB250166</td><td>FLAMEBOX 250 16x6 mm2</td><td>250х165х70 mm</td><td>16 poles</td><td>Ø - 6 mm2</td><td>12х25 mm</td></tr><tr><td>FB250226</td><td>FLAMEBOX 250 22x6 mm2</td><td>250х165х70 mm</td><td>22 poles</td><td>Ø - 6 mm2</td><td>12х25 mm</td></tr></tbody></table></figure>

Fire-resistant boxes FLAMEBOX are used to connect and distribute fire-resistant cable lines with E30-E90 functionality. IP54 protection. Compliance with DIN 4102-12, ISO 9001:2015.

FLAMEBOX 250 | Metal fire-resistant junction boxes

Type	Name	Size, mm	Terminals	Wire	Cable entries
FB250164	FLAMEBOX 250 16x4 mm²	250х165х70 mm	16 poles	Ø - 4 mm²	12х25 mm
FB250244	FLAMEBOX 250 24x4 mm²	250х165х70 mm	24 poles	Ø - 4 mm²	12х25 mm
FB250166	FLAMEBOX 250 16x6 mm²	250х165х70 mm	16 poles	Ø - 6 mm²	12х25 mm
FB250226	FLAMEBOX 250 22x6 mm²	250х165х70 mm	22 poles	Ø - 6 mm²	12х25 mm
