Data Sheet

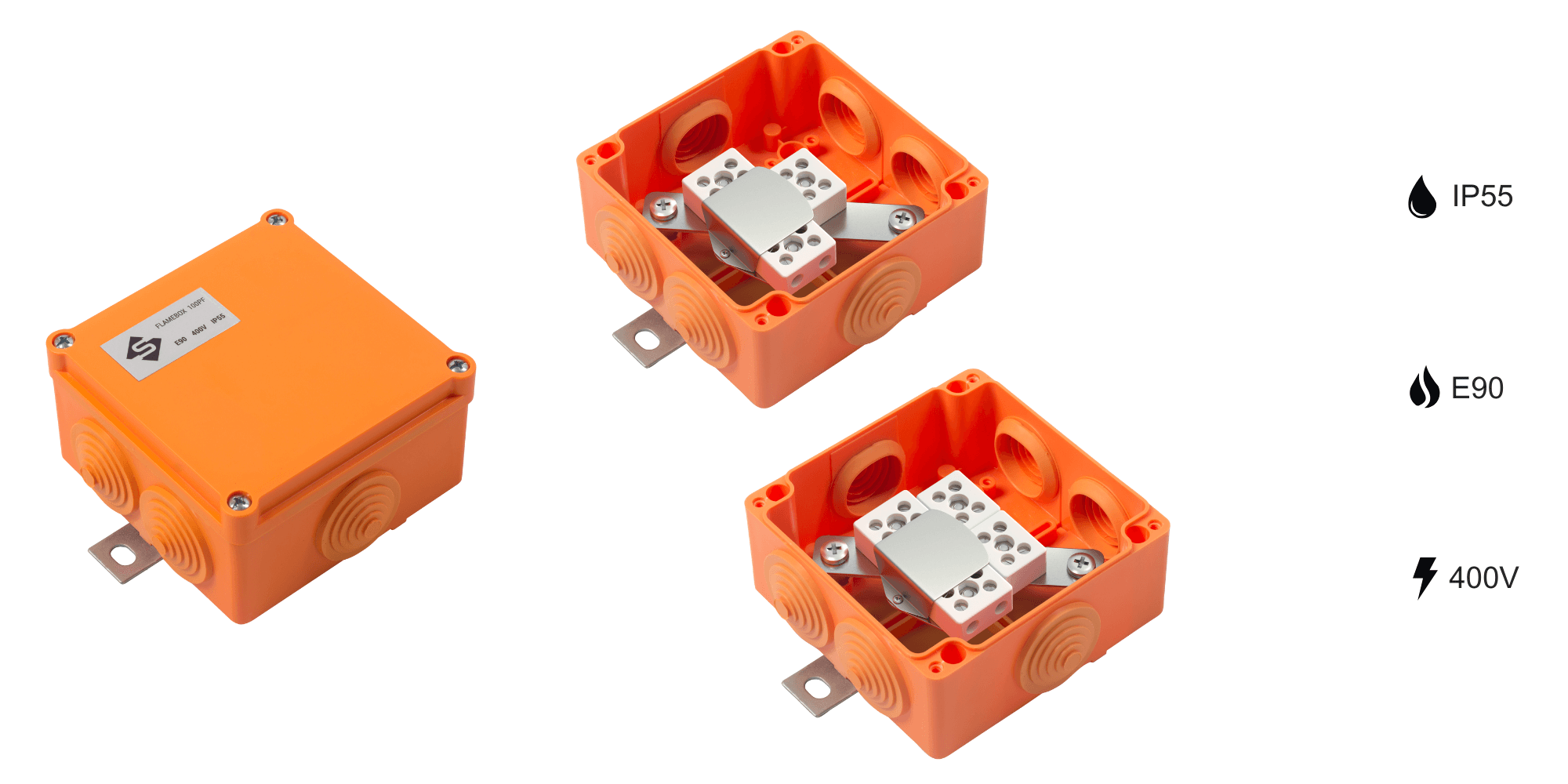

<figure class="image"><img style="aspect-ratio:2000/1000;" src="https://api.sivax.ua/assets/ec/0f/f0/88/8a/09/42/dd/82/14/ae/2f/f0/9d/71/20/ec0ff0888a0942dd8214ae2ff09d7120.png" width="2000" height="1000"></figure>Description FLAMEBOX fire-resistant junction boxes are designed for connecting and distributing fire-resistant cable lines with E30/E60/E90 functionality. The enclosures of the 100P series distribution boxes are made of thermoplastic.The boxes are equipped with a ceramic terminal block and M25 cable glands for sealed cable entry.Technical Specifications Protection rating: IP55 Maximum fire resistance class: E90 (P90) Voltage: 400V Color: orange Mounting hole dimensions: 6.5x10.5 mmDimensions<figure class="table"><table><tbody><tr><td>Type</td><td>Name</td><td>Size, mm</td><td>Terminals</td><td>Wire</td><td>Cable entries</td></tr><tr><td>FB100PF1T</td><td>FLAMEBOX 100РF 2х4 мм² 1T</td><td>104x104х57</td><td>2 poles + 1 tap</td><td>Ø - 4 mm2</td><td>6х25 mm</td></tr><tr><td>FB100PF2T</td><td>FLAMEBOX 100РF 2х4 мм² 2T</td><td>104x104х57</td><td>2 poles + 2 tap</td><td>Ø - 4 mm2</td><td>6х25 mm&nbsp;</td></tr></tbody></table></figure>

Fire-resistant boxes FLAMEBOX are used to connect and distribute fire-resistant cable lines with E30-E90 functionality. IP55 protection. Compliance with DIN 4102-12, ISO 9001:2015.

FLAMEBOX 100PF | Plastic fire-resistant junction boxes

Type	Name	Size, mm	Terminals	Wire	Cable entries
FB100PF1T	FLAMEBOX 100РF 2х4 мм² 1T	104x104х57	2 poles + 1 tap	Ø - 4 mm²	6х25 mm
FB100PF2T	FLAMEBOX 100РF 2х4 мм² 2T	104x104х57	2 poles + 2 tap	Ø - 4 mm²	6х25 mm
